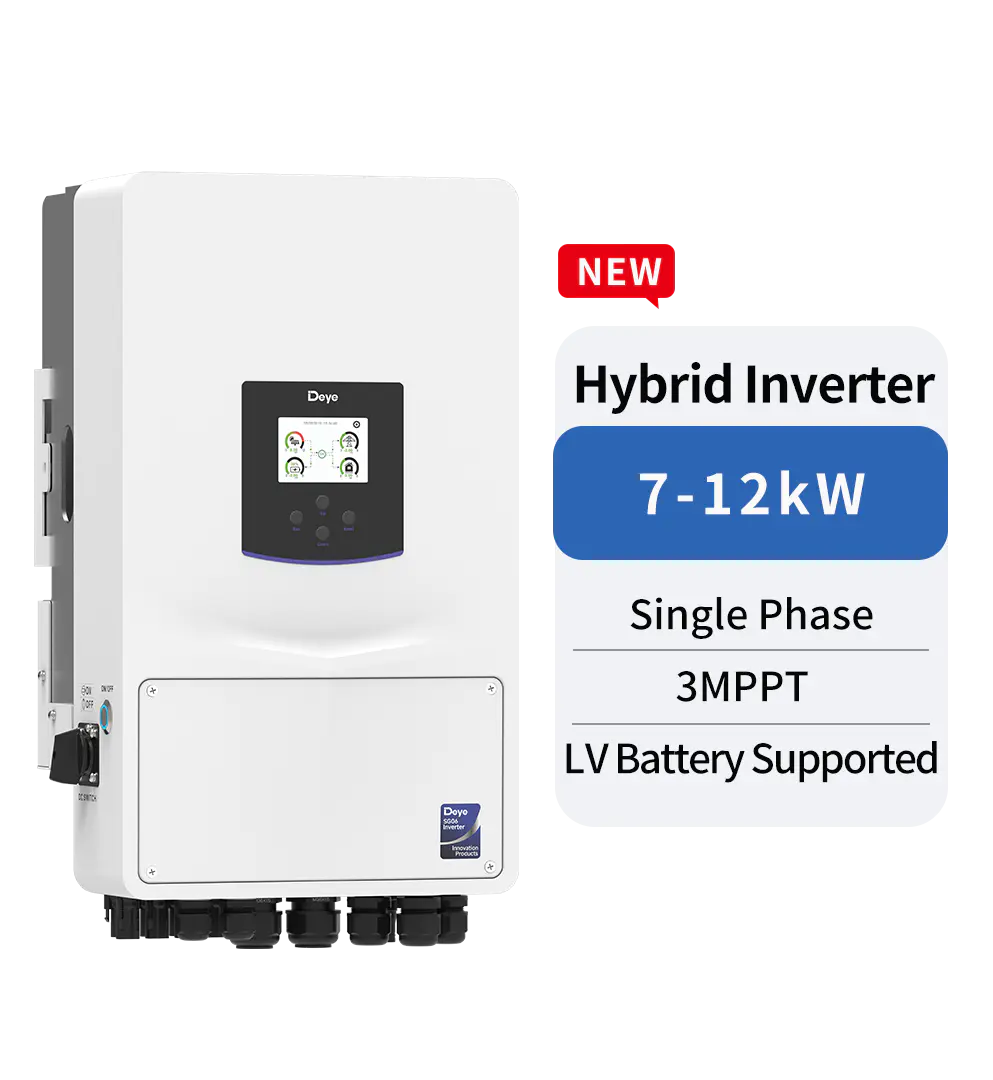

Deye SUN-12K-SG06LP1-EU-CM3 12kW Single-Phase Hybrid Inverter

The Deye SUN-12K-SG06LP1-EU-CM3 is a 12kW single-phase hybrid inverter — Deye's high-power 48V single-phase flagship, bridging residential and commercial solar needs. With 12kW continuous AC output, it can power a whole commercial building, small workshop, or a high-load home with electric vehicle charging, multiple air conditioners, or a borehole pump. Three independent MPPT inputs accommodate three separate string orientations or roof faces, maximizing energy harvest on complex roofs. Three MPPT inputs: each up to 500V Voc, 13A Isc; combined solar input up to 18kW peak. 48V battery bus with max 160A charge current (compatible with BYD, Pylontech, Dyness, EG4 rack batteries). Transfer switch <10ms (UPS mode). Up to 16 units in parallel for 192kW off-grid microgrids. CM3 hardware revision includes improved heat dissipation, upgraded IGBT modules, and enhanced EMC filtering. Built-in Ethernet port + WiFi for dual-path remote monitoring. SolarmanPro app supports live power flow, SoC display, grid export limits, and time-of-use battery charge scheduling. ⚠️ Certification note: CE marked to IEC 62109-1/2, VDE 0126, AS/NZS 4777. NOT UL or ETL listed. For off-grid and international hybrid applications.
