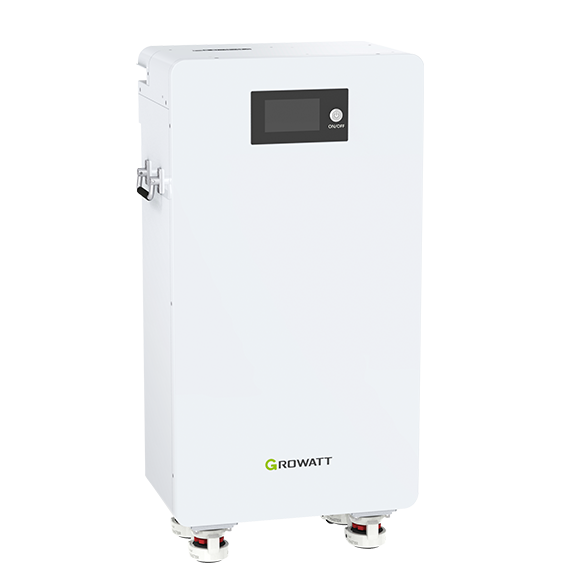

Growatt HOPE 16.0kWh LiFePO4 Modular Battery System

The Growatt HOPE 16.0kWh is a modular 48V LiFePO4 battery system designed as a companion to Growatt hybrid and off-grid inverters (SPH, WIT, SPF series). Four 4kWh battery modules connect in parallel on a shared 48V busbar with a master BMS controlling charge/discharge across all modules simultaneously. Expandable: start with 1 module (4kWh) and add up to 4 for 16kWh without additional wiring infrastructure. Grade-A LiFePO4 prismatic cells rated 6000 cycles at 25°C, 0.5C. BMS monitors cell-level voltage, temperature, and SoC with active balancing to <5mV cell voltage spread. Auto-communication via CAN 2.0B with Growatt ShinePhone app and all ShineWifi-X connected inverters for unified system monitoring — live power flow, SoC history, and AI-based charge scheduling. IP55 rated for utility room and garage installation. Wall or floor mount. Integrated circuit breaker and fuse protection per module. Low-temperature heating pad option (HOPE-H variant) for sub-zero installations. Modular battery capacity: 16kWh gross / 14.4kWh usable (90% DoD). Operating range: 44–58V. Dimensions per module: 460 × 220 × 660mm, weight 40kg. ⚠️ Certification note: CE marked, IEC 62619 safety certified, UN38.3 transport certified. NOT UL 9540 listed. Verify AHJ requirements for energy storage permits.
