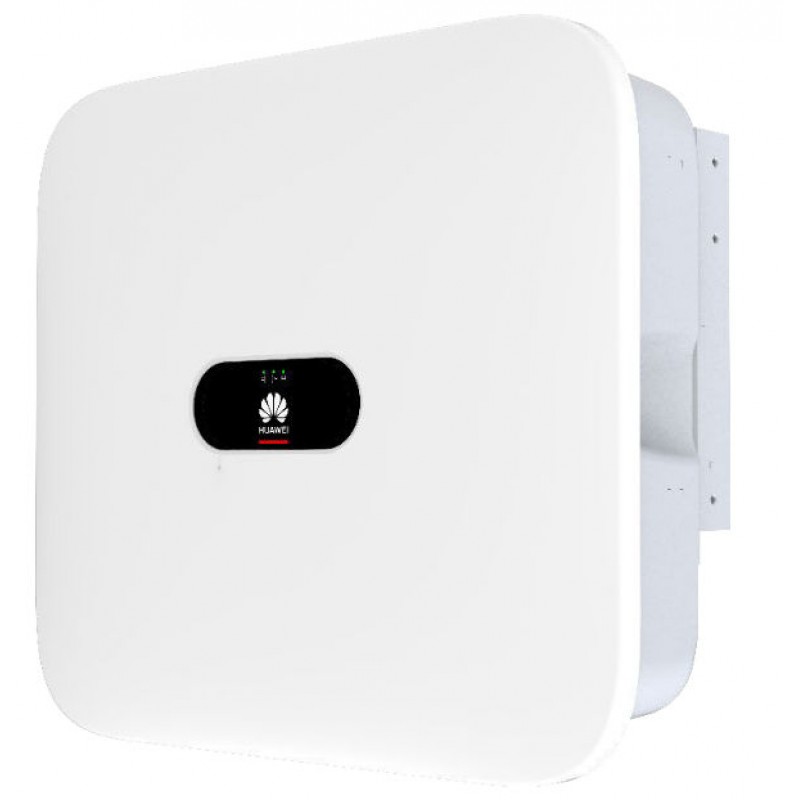

Huawei SUN2000-10KTL-M2 10kW Three-Phase String Inverter (1000V DC)

The Huawei SUN2000-10KTL-M2 is a 10kW three-phase commercial string inverter built around Huawei's FusionSolar AI-powered monitoring platform. With 4 independent MPPT trackers (2 strings each, 8 strings total), 1000V DC max input, and 98.6% peak efficiency, it is one of the most deployed commercial string inverters in Asia Pacific and Europe. SUN2000-M2 series incorporates AI-based shade optimization (Huawei Smart PV), per-MPPT bypass switching, and built-in arc-fault detection (AFCI). DC input: Voc max 1100V, MPPT range 200–1000V (wide range accommodates long strings in all seasons). AC output: 400V three-phase, 50/60Hz. Each MPPT: up to 13.5A Isc per string, 2 strings per tracker. Compatible with all Jinko Tiger Neo, Canadian Solar HiKu7, and LONGi Hi-MO panels in 1500V system configurations when 2 inverters are DC-bussed. FusionSolar cloud platform provides real-time yield analytics, string-level fault detection, I-V curve scanning, and remote firmware OTA. Modbus-TCP for SCADA integration. Smart Energy Controller compatible for peak-shaving + solar ESS applications. IP66, NEMA 4 rated, fanless natural convection cooling — silent and maintenance-free. Weight 22kg. Dimensions: 525 × 470 × 182mm. ⚠️ Certification note: CE marked to IEC 62109-1/2, IEC 61000 EMC. NOT UL 1741 listed. For international/commercial grid-tied projects. Consult local utility for grid-connection requirements.
