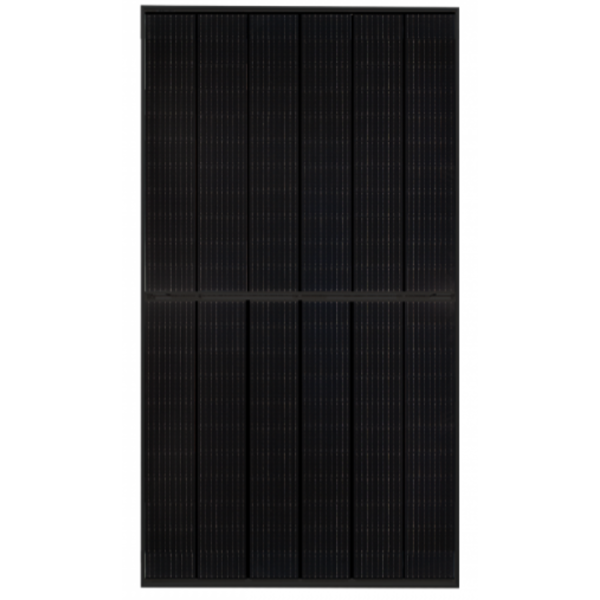

Jinko Tiger Neo JKM420N-54HL4-B 420W All-Black N-Type

Jinko Solar

Jinko Tiger Neo JKM420N-54HL4-B 420W All-Black N-Type

$189.99

In stock (180)5 day lead time
1
IEC 61215IEC 61730CE

Jinko's Tiger Neo uses N-Type TOPCon cells in a fully blacked-out aesthetic — ideal for residential rooftops and architectural applications where appearance matters. Compared to P-Type PERC, TOPCon eliminates LID (Light-Induced Degradation) and delivers superior performance in high-temperature and diffuse-light conditions. Pmax temp coeff of -0.30%/°C vs. -0.35% for standard PERC. 420Wp STC, 21.8% efficiency, Voc 39.04V, Isc 13.86A. IP68 junction box, 2000Pa snow / 2400Pa wind load resistance. ⚠️ Certification note: IEC 61215 / IEC 61730 and CE certified. NOT ETL or UL listed. Confirm with your AHJ before permit submission for grid-tie US installations.

Specifications

colorAll Black
isc_a13.86
voc_v39.04
cell_typeN-Type TOPCon
wattage_w420
weight_kg21.8
snow_load_pa2000
warranty_yrs25
wind_load_pa2400
dimensions_mm1762 × 1134 × 30
efficiency_pct21.8
temp_coeff_pmax-0.3
