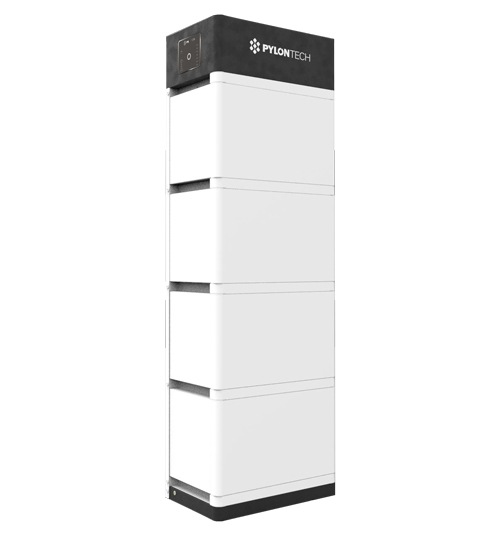

Pylontech Force L2 H6 100kWh High-Voltage Industrial Battery Cabinet

The Pylontech Force L2 H6 is a 100kWh high-voltage industrial energy storage cabinet — Pylontech's tier-1 solution for C&I (commercial and industrial) behind-the-meter applications: manufacturing plants, data centers, retail hubs, farms, and microgrids. Each H6 cabinet contains 6 Force L2 battery modules wired in series-parallel for 614V DC nominal voltage output, enabling direct coupling with HV commercial string inverters (Huawei SUN2000, SMA Sunny Tripower, Fronius Symo) without a step-down transformer. Pylontech Force L2 uses automotive-grade LiFePO4 prismatic cells with 10,000-cycle rated life at 25°C, 0.5C — equivalent to 27+ years of daily cycling. Master BMS with Ethernet + RS485 + CAN provides real-time telemetry (cell-level voltage/temperature, SoC, SoH, insulation resistance, contactor status) accessible via Pylontech CloudBMS or third-party SCADA via Modbus TCP/IP. Key specs: 100kWh gross / 90kWh usable (90% DoD), 100kW peak charge/discharge, IP55 outdoor-rated steel cabinet (IK10 impact), integrated manual service disconnect + emergency stop, pre-installed SPD surge protection, 150A HV DC circuit breaker, and FM200 fire suppression pre-wire conduit. Turnkey site delivery: arrives pre-assembled, tested at factory, and BMS-configured. On-site commissioning: connect HV DC cables to inverter, configure inverter battery parameters, done. SolarDirect provides remote commissioning support. 10-year warranty from Pylontech. Dimensions: 2200 × 800 × 1100mm (H × W × D). Weight: 1350kg. Ships on EUR pallet via freight.
